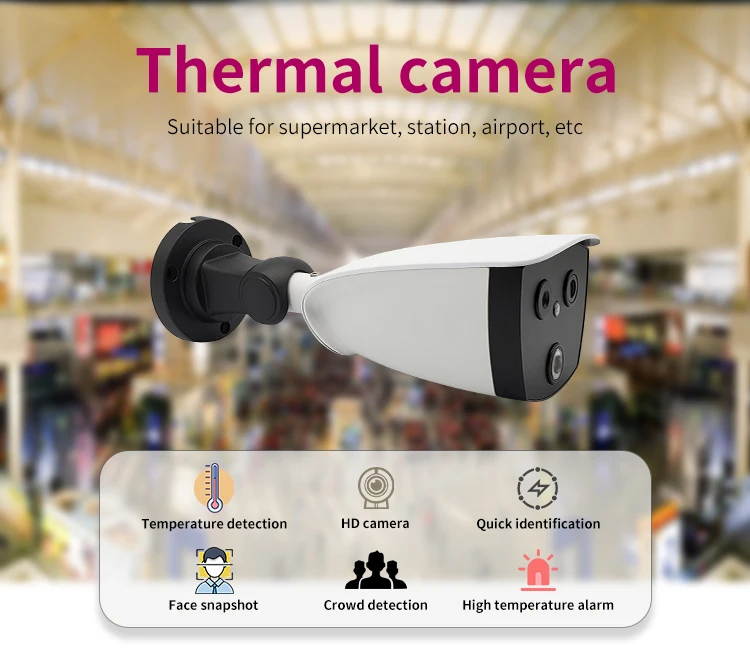

JTA-TC-01-101 Binocular Optical Bi-spectrum thermal camera Fever Detection Body Temperature Automatic Built-in Siren
Hot sale products
Hot sale in
-
1 - 49 Pieces
$821.00
-
50 - 99 Pieces
$777.00
-
>=100 Pieces
$747.00
- Resolution:
- 1920 x 1080
- Type:
- Ip Camera
- Style:
- BULLET CAMERA Dome Camera Fisheye Camera
- Samples:
-
1920 x 1080 , Ip Camera , Dome Camera
- Shipping:
- Support Express · Sea freight · Land freight · Air freight
- Lead Time:
-
Quantity(Pieces) 1 - 20 >20 Est. Time(days) 15 Negotiable
- Customization:
-
Customized logo (Min. Order: 500 Pieces)Customized packaging (Min. Order: 500 Pieces)
More
Graphic customization (Min. Order: 500 Pieces) Less
Product Details
Company Profile
Overview
Quick Details
- Channels:
-
64
- Warranty:
-
1 Year
- Network:
-
bluetooth, wifi, ONVIF, TCP, Ip, SDK
- Function:
-
Waterproof / Weatherproof, Wide Angle, Built-in Siren, Two-way Audio, Thermal image, One-way Audio, PAN-TILT, NIGHT VISION, Alarm I/O, RESET, Built-in Mic
- Application:
-
Indoor
- Customized support:
-
Online technical support, Customized logo, OEM, ODM, Software reengineering
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
Snappy
- Model Number:
-
JTA-TC-01-101
- Sensor:
-
CMOS
- Special Features:
-
Built-in Siren, NIGHT VISION, One-way Audio, Two-way Audio, Human Motion Tracking, Motion Detection, People Counting, Temperature Measurement, Face detection, PAN-TILT
- Certification:
-
ce, FCC, CCC
- Data Storage Options:
-
Cloud, Memory Card, NVR, Full HD, SD Card, Micro SD card, NAS
- Video Compression Format:
-
H.265
Product Certification
- CE Certified.
- Valid from 2016-12-27 until 2049-12-31
- FCC Certified.
- Valid from 2020-04-08 until 2049-12-31
Supply Ability
- Supply Ability:
- 10000 Box/Boxes per Month
Packaging & Delivery
- Packaging Details
- color box, carton
- Port
- Shenzhen, Hongkong, Guangzhou, Shanghai
- Picture Example:
-
- Lead Time :
-
Quantity(Pieces) 1 - 20 >20 Est. Time(days) 15 To be negotiated
Online Customization
Video Description
Product Description










Specification
Specification | ||
Image Sensor | Vox Uncooled Focal Plane Arrays | |
Resolution | 256x192 | |
Pixel Interval | 12pm | |
NETD | Less than 60 mK (@25°C.F#=1.1) | |
Aperture | F1.0 | |
Field of View | 35° x 27° (H x V) | |
Image Sensor | 1/2.8" 2.0M Pixel CMOS | |
Resolution | 1920x1080P | |
Min. Illumination | Color: 0.005Lux @ (F1.2, AGC ON), B/W 0.001 @ (F1.2, AGC ON) | |
Field of View | 84° x 45° (H x V) | |
Focal Length | 4mm | |
Shutter Speed | 1s to 1/100,000s | |
White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/lndoor/Outdoor/Daylight Lamp/Sodium Lamp | |
Day& Night | ModeiR cut filter with auto switch | |
WDR | 80 dB | |
Bi-spectrum Image Fusion | Fusion view of thermal view and overlaid details of the optical channel | |
Picture in Picture | Combines details of thermal and optical image PIP, overlay thermal image on optical image | |

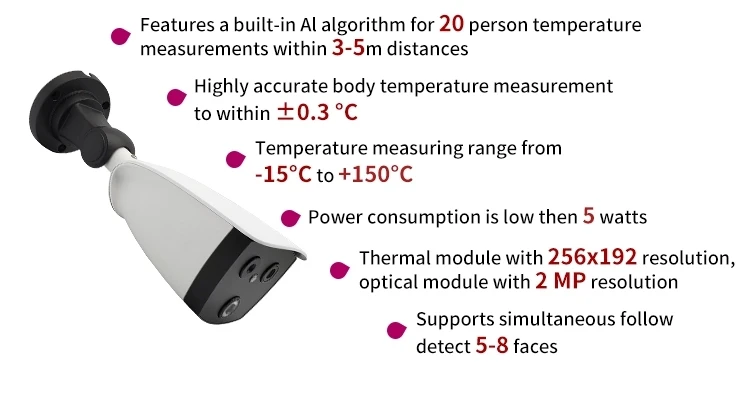

Face snapping | Built-in deep learning Al algorithm, Supports simultaneous detection of 20-30 faces | |
Temperature Measurement | Support global and local temperature | |
Temperature Range | From-15°C to +150°C | |
Temperature Accuracy | Target temperature 35°C ~ 38°C ±0.3 °C | |
Target temperature 20°C ~ 33°C ±0.6 °C | ||
Target temperature 38°C ~ 50°C ±0.6 °C | ||
Main Stream | Thermal: 25fps(1920 x 1080, 1280 x 720) | |
Sub Stream | Thermal: 25fps(704 x 576, 352 x 288) | |
Video Compression | H.264 (Baseline/Main/High Profile) /MJPEG/H.265 | |
Audio Compression | G 711u/G711a/G.7221/MP2L2/G.726/PCM | |
Protocols | TCP/IP, ONVIF, GB/T 28181, DHCP. RTP, RTSP,PPPoE UPnP, UDP | |
API | ONVIF (Profile S, Profile G, Profile T), SDK | |
Web Client Language | English, Chinese | |
Power | DC 12V, 0.65A | |
Work Temperature/Humidity | From -20°C to 55°C; Humidity: 95% or Less | |
Protection Level | IP67 | |
Dimension | 246 mm x 101 mm x 81 mm (with bracket) | |
Weight | Approx. 1.0 kg | |
body temperature camera binocular thermal imaging camera temperature detecting Fever Detection thermal IP camera |
